HD3 Storage Systems – Mechanical Assist/Manual
Our HD3 Storage Systems carriages are made of a special 6061 structural grade aluminum with a 5/8”retaining lip. Carriages are fully welded in a jig to insure straightness and squareness and have a 780 pound capacity per foot. Our carriages have 3” dual flanged guide wheels with a capacity of 4500 pounds per wheel assembly. Drive wheels are connected to a continuous ¾” solid steel drive shaft. Our carriages ride on a track made of special aluminum extrusion fitted with a 5/8” 1045 carbon steel bar.

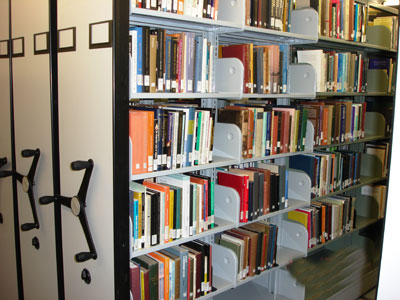

Carriages are available up to 36” wide and 18’ long. Carriages are made to fit any sturdy shelving or other storage products end panels available in a variety of high and low pressure laminate colors. Mechanical assist carriages have a heavy duty crank assembly and safety lock standard with several other options available. Manual carriages have a 9” aluminum pull handle. There are many customizable floor & decking options available.
High capacity
High grade aluminum carriages with 780 lbs per foot weight capacity, solid steel drive system with sealed and lubricated bearings.
Lightweight & Strong
Carriages are made of a special 6061 structural grade aluminum extrusions.
Safe
Recessed shelving mount, fully supported and interlocking drive panel, optional in rail and overhead anti-tips, optional mechanical safety sweep and positive carriage safety lock provide the safest system in it class.
Quality
Carriages are fully welded in a jig with factory installed precision drive and guide system components.
Standard Features
- Heavy Duty Crank: has a solid aluminum crank with heavy duty precision ground and sealed bearings .
- Safety Locks: locks the drive system not the crank handle. If crank drive system breaks or fails, the system is still safely locked!
- Drive Chain Tightener: is adjustable without removing end panel!
- Gearing: is reduced as required for ease of movement!
- Flooring: ¾” tongue and grooved sturdi-floor plywood, with 19” ADA ramp.
- Fully Assembled Components Where Possible
Optional Features
- Keyed Security Lock
- High Security Lock
- Inventory Control Lock
- Superior Rail Anti-tip
- Mechanical Safety Sweep
- Superior Overhead Anti-Tip
- End Stops
- ADA Tread Plate Ramp
- Floor Covering
- Dual Drive System
Please call us at 630-748-8099 or email us at sales@filingtoday.com for more details or an estimate.
